NFPA 70E labeling requirements call for clear, durable, and accurate warnings on electrical equipment where arc flash or shock hazards are present.
Labels must communicate incident energy, boundaries, required PPE, and system voltage—so workers know the risks before opening or servicing anything energized.
This isn’t optional. It’s a front-line defense against injury, liability, and OSHA citations.
What NFPA 70E Is—and Why Labels Matter
NFPA 70E is a national electrical safety standard maintained by the National Fire Protection Association. It provides guidelines for reducing workplace exposure to arc flash and electrical shock hazards.
Part of that protection involves labeling. Specifically, NFPA 70E Section 130.5(H) requires that electrical equipment likely to require inspection, maintenance, or servicing while energized must be marked with:
- Nominal system voltage
- Arc flash boundary
- At least one of the following: incident energy, required PPE level, working distance, or site-specific shock data
If the label is missing, unreadable, or outdated, it’s a compliance risk—and potentially a human one too.

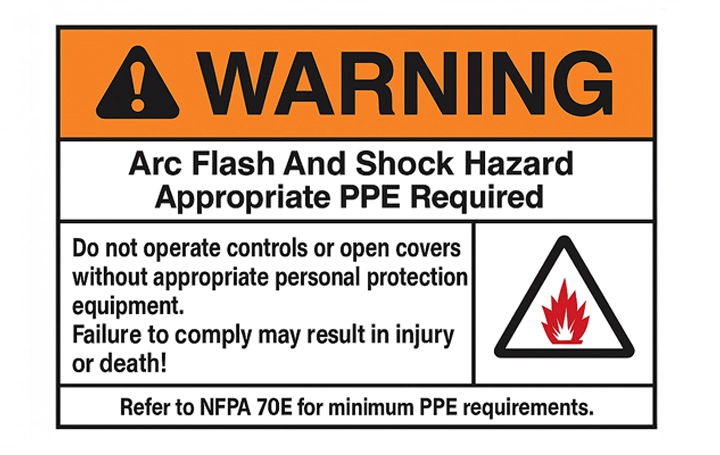

What a Compliant Arc Flash Label Includes
Here’s what a compliant label typically contains:
| Element | Purpose |
|---|---|
| Nominal system voltage | Identifies voltage exposure risk |
| Arc flash boundary | Distance beyond which PPE isn’t required |
| Incident energy (in cal/cm²) | Severity of arc flash at working distance |
| Required PPE | Clothing, face shields, gloves, etc. |
| Equipment ID | Helps with reference and inspection documentation |
| Date of analysis | Indicates whether data is current |
Many teams also include shock protection boundaries or limited/approach distances, though they’re not strictly required if incident energy and boundaries are already present.
Where Labels Go—and When They Need Updating
Labels are required on any equipment that’s likely to be worked on while energized, including:
- Breaker panels
- Motor control centers
- Disconnect switches
- Transfer switches
- Switchboards
They must be field-visible (not inside covers) and updated every five years, or whenever system changes might affect the calculated values.
If you’re still using labels with “Category 1–4” language, those haven’t been valid since the 2015 NFPA update. Labels now require actual calculated values, not broad categories.
How Labels Improve Real-World Safety
A regional logistics hub recently upgraded its arc flash labels during an electrical safety audit. Before the change:
- Labels were faded, using outdated hazard categories
- Several panels had no labeling at all
- New hires weren’t being briefed on arc boundaries
After switching to clear, laminated labels with updated incident energy data:
- Time-to-lockout procedures improved by 30%
- Workers cited fewer near misses or hesitations at control panels
- The company passed its third-party safety audit without exception
This wasn’t about branding. It was about readability, confidence, and traceability—the things that matter on the floor.
For more real-world examples, check out our breakdown on equipment labeling for arc flash hazards—it covers layout tips, materials, and field-tested labeling insights.
What NFPA 70E Labels Look Like in the Field
Labels don’t live in a binder—they live on energized equipment that gets used, inspected, and opened daily. Here’s what compliant arc flash labels actually solve on the floor:
Scenario 1: Maintenance Shift in a Cold Storage Warehouse
Problem: Electricians couldn’t tell if they needed PPE for a switchboard in a refrigerated area. The old label was smudged, missing energy data, and didn’t indicate distance or boundary.
Update:
- A new laminated label was installed with the exact incident energy (3.6 cal/cm²)
- It listed working distance (18 inches), PPE (flame-resistant shirt/pants, face shield), and a clear arc flash boundary
Why It Helped:
- Workers immediately knew the gear they needed
- PPE lockers were stocked accordingly by shift leads
- Maintenance work resumed without delays or supervisor callbacks
Scenario 2: Equipment Panel in a Dusty Manufacturing Plant
Problem: A press operator entered an energized panel room without gear—he assumed it wasn’t “live” because the label was worn out and unreadable.
Update:
- The site safety team walked the floor and replaced 32 labels
- Labels were printed with QR codes that linked to the system’s one-line diagram and label expiration date
Results:
- Weekly toolbox talks now reference those QR-linked diagrams
- Near misses dropped 70% within 3 months
- Safety inspectors documented “exceptional clarity of communication”
Scenario 3: Third-Party Contractor Arrives for Service
Problem: A visiting electrical contractor didn’t know what PPE to wear for a rooftop chiller panel. The building had inconsistent labeling.
Update:
- Labels were standardized across all units
- Each now includes equipment ID, review date, and matching icons for required PPE
Outcome:
- Contractors now arrive with correct PPE
- Time wasted on clarification is down by 40%
- The building’s insurance audit gave a “pass” with zero required changes
These aren’t edge cases—they’re everyday examples of how labeling bridges the gap between a standard and a safe decision. When a worker stands in front of an energized panel, the label is often the first and only piece of info they get before acting.
Need Arc Flash Labels That Meet NFPA 70E?
If you’re reviewing older panels or setting up labeling for new equipment, it helps to start with labels that are built for the conditions—clear, durable, and designed to communicate exactly what’s required.
Labels used in high-heat, high-traffic, or outdoor electrical environments need to stay legible long after installation. That’s where industrial labels for electrical equipment come in—they’re designed to resist abrasion, solvents, and thermal stress without peeling or fading.
NFPA 70E Labeling FAQs
Labels must include nominal voltage, arc flash boundary, and either incident energy or required PPE.
At least every five years—or sooner if system changes impact incident energy.
Yes, as long as they reflect accurate site-specific data and meet visibility/durability needs.
OSHA enforces safety outcomes; NFPA 70E provides the detailed “how.” Complying with NFPA 70E is the easiest path to OSHA compliance.
No. Labels must now show exact incident energy or PPE requirements—not general categories.
